Troubleshooting

How to resolve issues (Continued)

Problem

Reason

Fix

False counts

Shadows

Shadows can generate false counts, for example, sunlight from outside, occasionally obscured by moving clouds will cause shadows to cross a counting line. Depending on the angle of an indoor light or the sun, the shadows of people walking by (but not crossing) a counting line can trigger false counts.






Incorrect camera placement. In this example, the opening and closing of the door may cause false counts.




How to tell if you have set the camera height correctly:
The Person Size box should be no more than 1/3 the size of the screen and no less than 1/5 of the size of the screen.



Incorrect counting line placement. For example, this counting line is too close to the door.




In general, it is better to put the counting line further away from the door, so that people do not stop on the counting line.




Multiple counts for the same person

Person size is set too small

Increase the Person Size box. The Person Size box should be no more than 1/3 the size of the screen and no less than 1/5 of the size of the screen.

CPU is too busy message

Not enough processing resources.

Indicated by lower FPS rate.

  • Ensure that Motion Detection is turned off.

  • Limit the Maximum frame rate to 11 FPS per viewer:

  1. In the Axis Network Camera screen, click Setup. The Basic Setup screen opens.

  2. In the left pane, click Video & Audio. The Video Stream Settings screen opens with the Image tab active.

  3. In the Video Stream section, select the Limited to option. Enter 11 in the text box.

  4. Click Save.

  • Ensure that the Aimetis People Counter is the only application running on the camera at the time. To verify how many applications are running:

  1. In the Axis Network Camera screen, click Setup. The Basic Setup screen opens.

  2. In the left pane, click Applications. The Application Packages screen opens.

  3. Review all the appications listed under the Application column and check whether they are listed as Running under the Status column.

  4. Select the package and click Stop.



(continued)
Not enough processing resources.

Indicated by lower FPS rate.





  • Ensure that the number of client video stream connections is 1.
    To determine the number of video stream connections:

  1. In the Axis Network Camera screen, click Setup. The Basic Setup screen opens.

  2. In the left pane, click System Options.

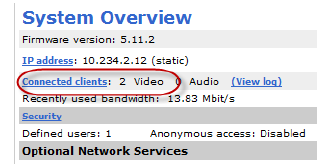

  3. Click Support and then System Overview. The System Overview screen opens.

  4. In the Connected clients row, the value beside Video indicates the number of streams.




Missed counts

Camera not high enough. Consequently people appear larger and to be moving very fast.

How to tell if you have set the camera height correctly:
The Person Size box should be no more than 1/3 the size of the screen and no less than 1/5 of the size of the screen.

If you cannot adjust the height of the camera, adjust the zoom on the camera lens.



Person size is set too big

Reduce the Person Size box. The Person Size box should be no more than 1/3 the size of the screen and no less than 1/5 of the size of the screen.



Black mat on floor with person in dark clothing crossing counting line

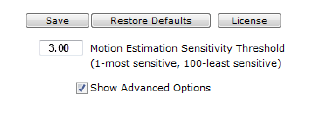

Reduce the Motion Estimation Sensitivity Threshold option to 3 or 4 in the Advanced Options section.
